Reference Warrior 2018- deprecated

Quick Help

(Windows only)

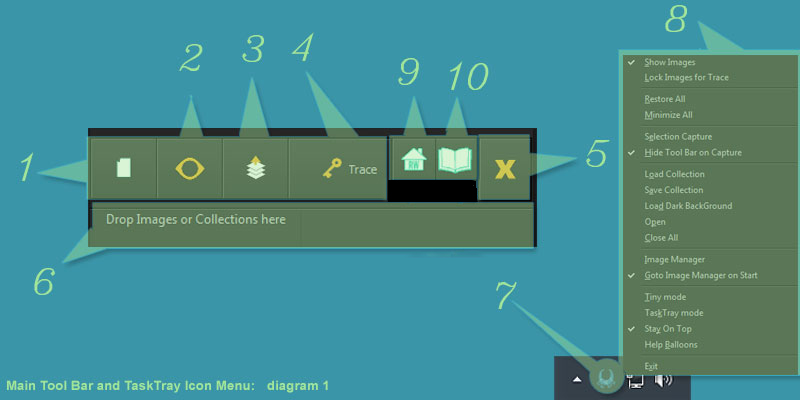

• 1: Open one image at a time.
• 2: Show/Hide the image viewers.
• 3: Make RW stay on top of the window stack.
• 4: Lock the image viewers in place to work on the application beneath.
• 5: Close RW.
• 6: Main Toolbar drag & drop area for image(s)/Collections.
• 7: Task Tray Icon.
• 8: Main Toolbar/Task Tray Icon Popup menu.
• 9: Open the About dialog.
• 10: Open the Quick Help dialog.

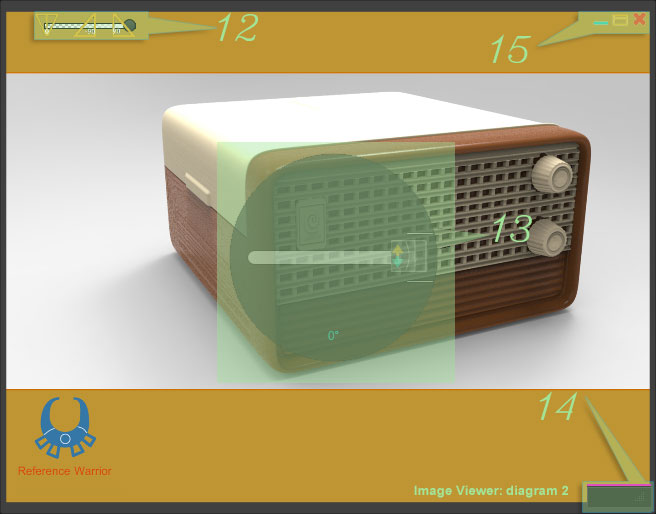

• 12: Transparency widget and (Rotation widget when holding the R key).
• 13: Rotation widget when holding the R key.
• 14: Scale widget.
• 15: Border icons buttons.

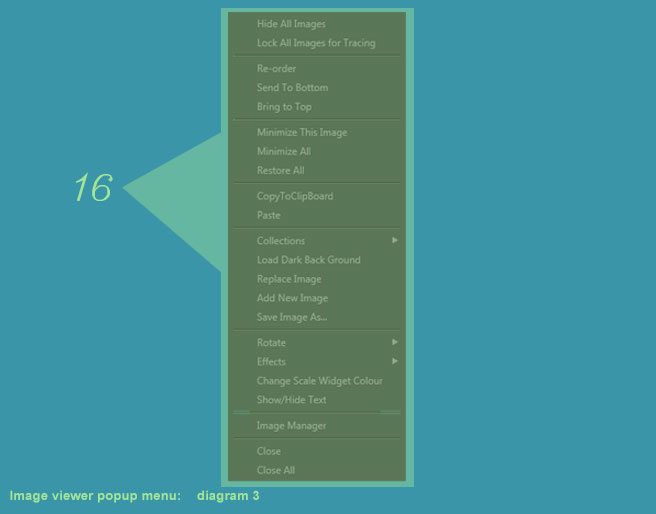

• 16: Image viewer Popup Menu.

• Sliding the transparency widget will increase the transparency of your image(s) or hold T and Left mouse.
• Holding R will change the transparency widget to the rotation widget.
• Press H to toggle the visibility of the image viewer's interface widgets .
• To pan image(s) drag with the Left mouse.
• To zoom image(s) in and out scroll with the Middle mouse or hold Z and Left mouse.
• To move the image viewer window(s) drag with the Middle mouse or hold Control and Left mouse.
• Right mouse click for the pop up menu..
• Double click on the image viewer to load an image.
• Double click on the image viewer's scale widget to minimize viewer.


• To move the main toolbar drag with the Left mouse.
• Drag and drop images or collection files(.rwc) ontov the main toolbar to open new image(s).
